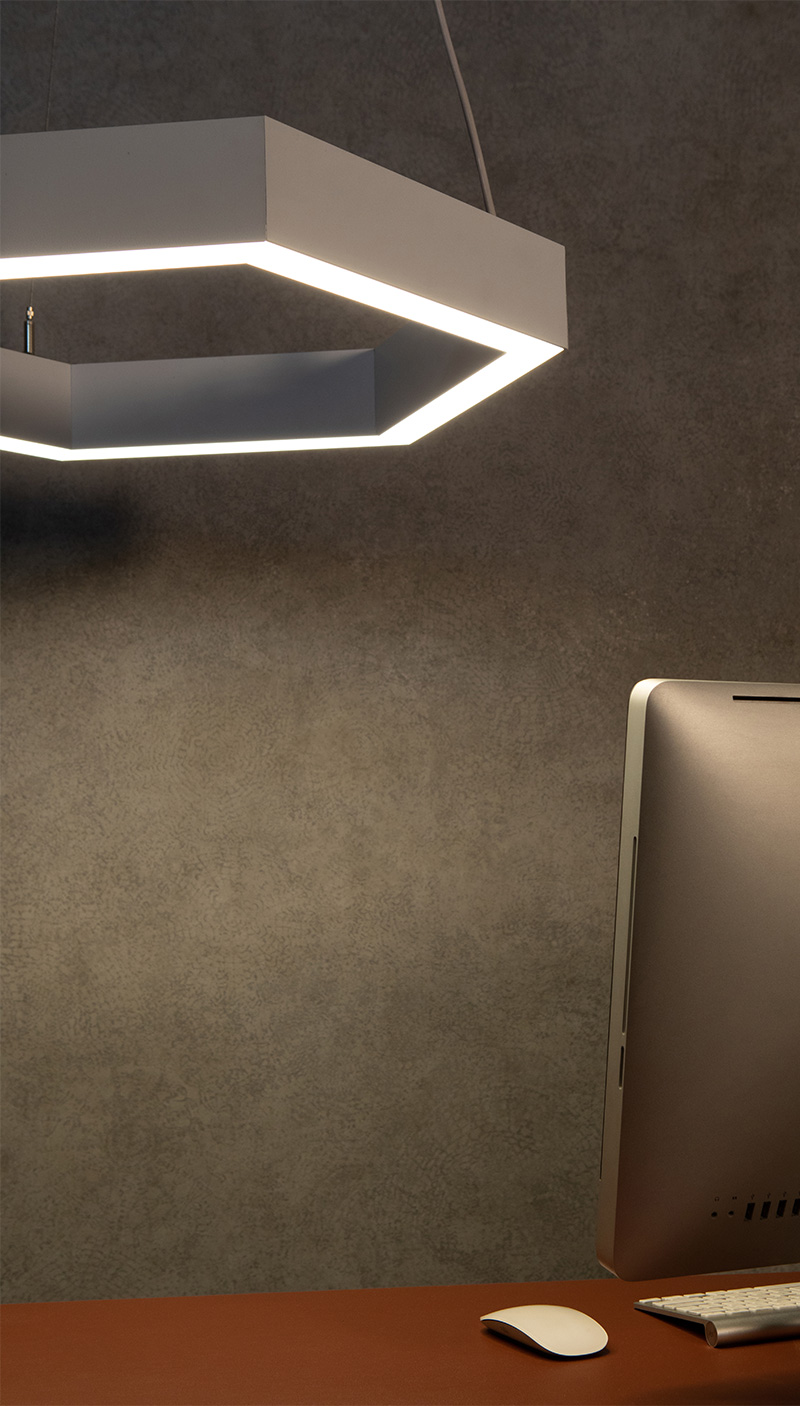

Hexedge Hollow (H) – Pendant – Direct-Indirect

Hexedge H can be mounted in two ways. Luminaire suspended from the ceiling with a transparent wire.

General

Product Code:

HPH40-D/I-600 / HPH40-D/I-900

Luminaire Type:

Pendant

Body Construction:

Highest grade extruded aluminum

Surface Finishes:

Texture White / Texture Black / Texture Grey / Any Other RAL color possible on Request

IP Rating:

40

Physical

Dimension Φ x H x W:

600x90x40mm / 900x90x40mm

Fixing System:

1500 mm long steel wires with height adjustment system

LED

Light Source:

LED

CCT:

3000K / 4000K / 5700K / TW (Tunable White) 2700-6500K

CRI:

80+, 90+ (Available on request)

MacAdam Step:

3

Optical

Light Distribution:

Direct-Indirect

Diffuser:

Satin Finished PC Opal Diffuser / Micro- Prismatic Diffuser

UGR:

< 22 with Opal Diffuser,
< 19 with Micro-Prismatic Diffuser

Electrical

System Wattage:

75W, 115W

Luminous Flux:

5250 lm / 8050 lm

Power Factor:

0.94

Driver

Non-Dimmable

DALI Dimmable

0-10V Analogue

Bluetooth 4.0 CASAMBI remote control through App

Color Variants

Downloads

Hexedge Hollow (H) - Pendant - Direct-Indirect Catalogue

Hexedge Hollow (H) – Pendant – Direct-Indirect Data Sheet

Hexedge Hollow (H) – Pendant – Direct-Indirect Custom Data Sheet

Hexedge Hollow (H) – Pendant – Direct-Indirect Installation Manual

Hexedge Hollow (H) – Pendant – Direct-Indirect IES files

Download All Except custom data sheet

Disclaimer: *Images are for display purposes only and could be different based on the type chosen. For better understanding, please refer to the diagrams.
