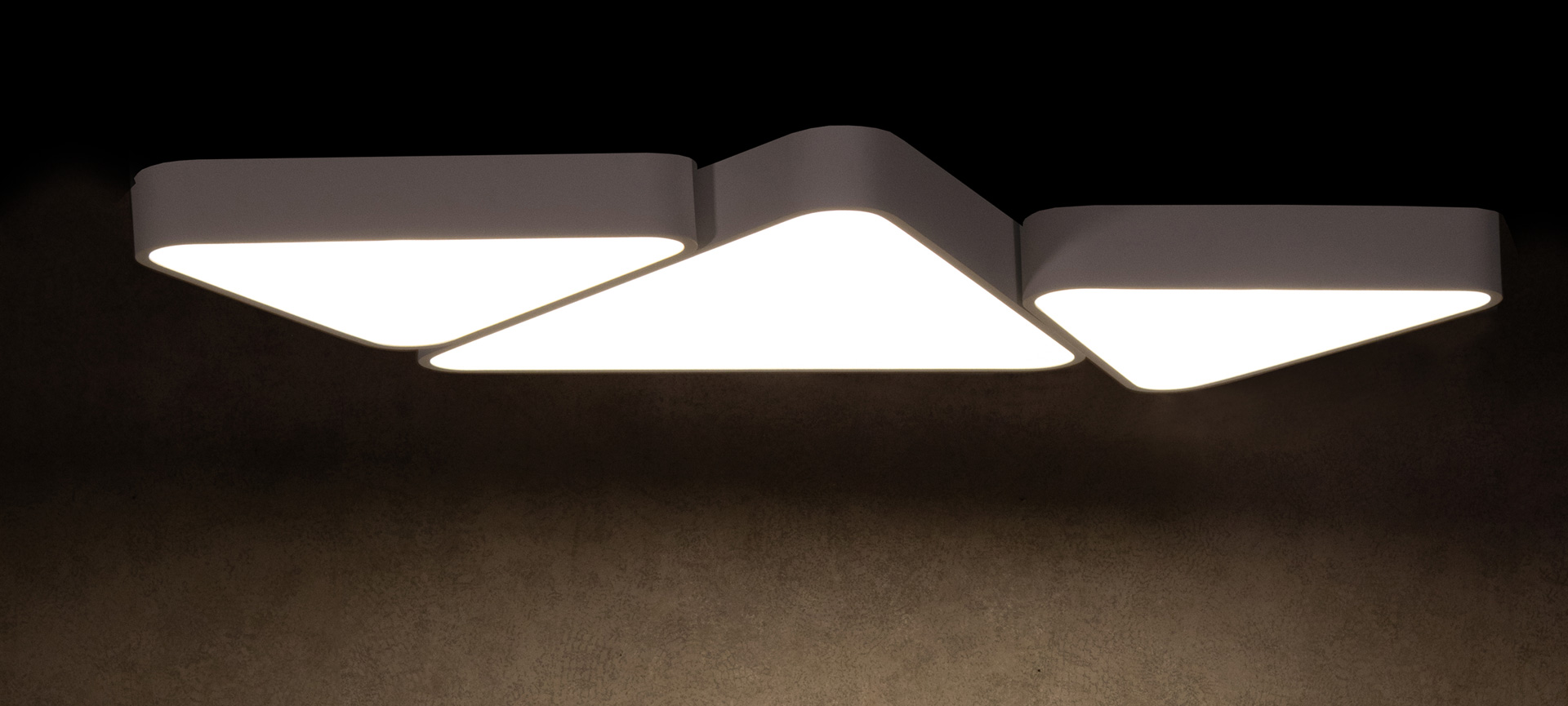

Soft triangO – Pendant

Soft triangO can be mounted in three ways. Luminaire suspended from the ceiling with a transparent wire.

All Soft triangO - Pendant can be mounted in two ways with two canopy systems

General

Product Code:

STP-450 / STP-600 / STP-900

Luminaire Type:

Pendant

Body Construction:

Highest grade extruded aluminum

Surface Finishes:

Texture White / Texture Black / Texture Grey / Any Other RAL color possible on Request

IP Rating:

40

Physical

Dimension L x H:

450x85mm / 600x85mm / 900x85mm

Fixing System:

1500 mm long steel wires with height adjustment system

LED

Light Source:

LED

CCT:

3000K / 4000K / 5700K / TW (Tunable White) 2700-6500K Possible only for 600 mm / 900 mm

CRI:

80+, 90+ (Available on request)

MacAdam Step:

3

Optical

Light Distribution:

Direct

Diffuser:

Satin Finished PC Opal Diffuser / Micro- Prismatic Diffuser

UGR:

< 22 with Opal Diffuser,
< 19 with Micro-Prismatic Diffuser

Electrical

System Wattage:

35W, 45W, 75W

Luminous Flux:

2450lm / 3150lm / 5250lm

Power Factor:

0.94

Driver

Non-Dimmable

DALI Dimmable

0-10V Analogue

Bluetooth 4.0 CASAMBI remote control through App

Color Variants

Downloads

Soft triangO - Pendant Catalogue

Soft triangO – Pendant Data Sheet

Soft triangO – Pendant Custom Data Sheet

Soft triangO – Pendant Installation Manual

Soft triangO – Pendant IES files

Download All Except custom data sheet

Disclaimer: *Images are for display purposes only and could be different based on the type chosen. For better understanding, please refer to the diagrams.
