1022

General

Product Code:

1022

Luminaire Type:

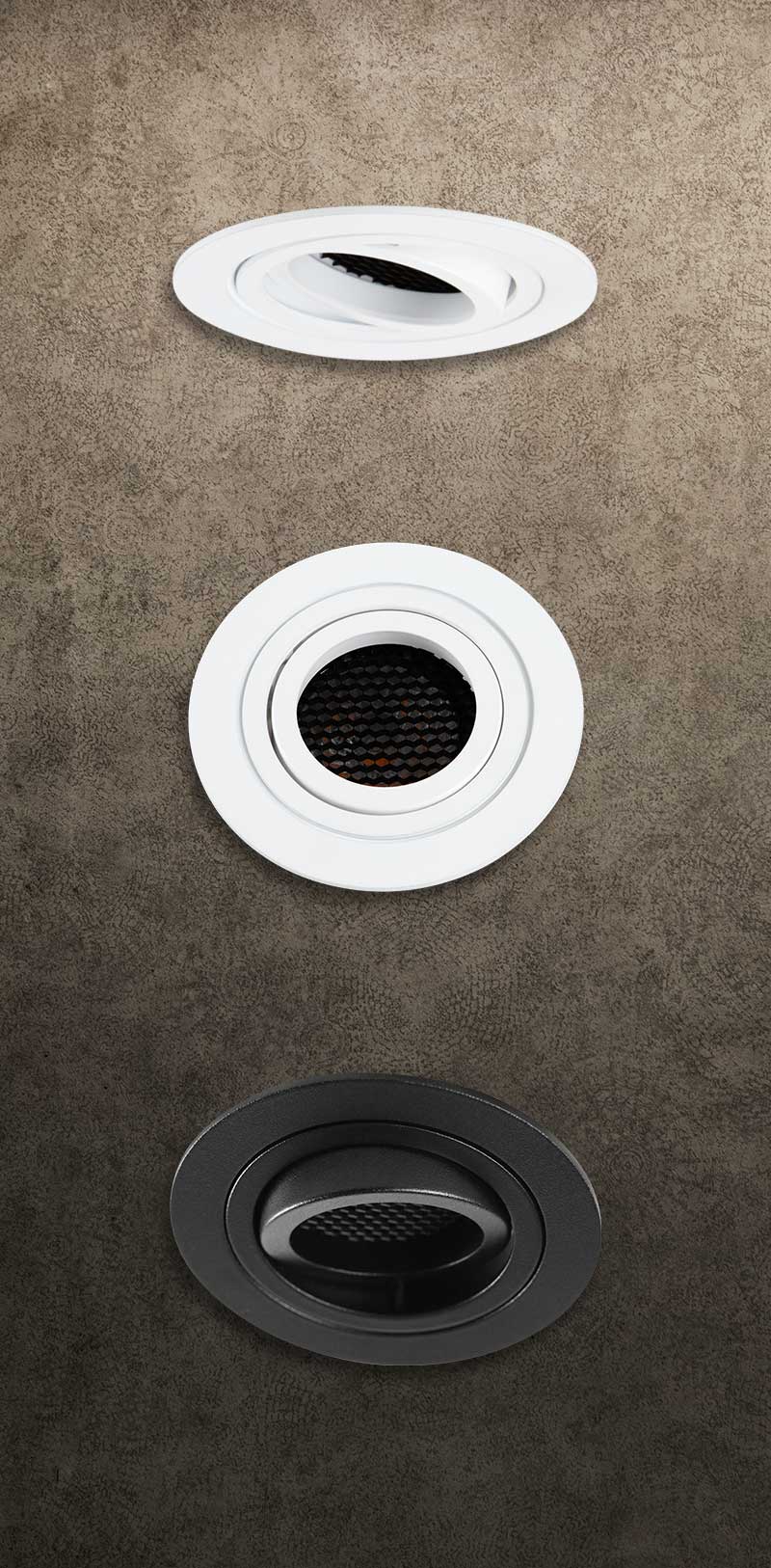

Adjustable deep recessed Downlight with Matt black Baffle . Fast and easy mounting without tools. Outer ring remain in the ceiling and inner ring take out for changing lamp and driver.

Body Construction:

Die cast aluminum

Surface Finishes:

Texture White / Texture Black / Any RAL color possible on request.

IP Rating:

20 , 40 , 54

Physical

Dimension Φ x H:

90mmx100mm

Tilt:

30*

Rotation:

356*

Ceiling Cut-Out:

78mm

Accessories:

Glass / Honeycomb

LED

Light Source:

LED

CCT:

3000K / 4000k / 5000k

CRI:

+80 , +90 available on request

MacAdam Step:

3

Optical

Light Distribution:

Adjustable

Visual Cut off:

30*

Beam Angle:

24* , 36* , 60*

Electrical

System Wattage:

5W, 8.5W, 10.7W, 13W

Input Voltage:

220-240V

Driver

Non-Dimmable

DALI Dimmable

0-10V Analogue Dimmable

Phase Cut Dimmable

Downloads

1022 Data Sheet

1022 Custom Data Sheet

1022 Installation Manual

1022 IES files

Download All Except custom data sheet

Disclaimer: *Images are for display purposes only and could be different based on the type chosen. For better understanding, please refer to the diagrams.
