Tubular-56C-Ceiling mounted

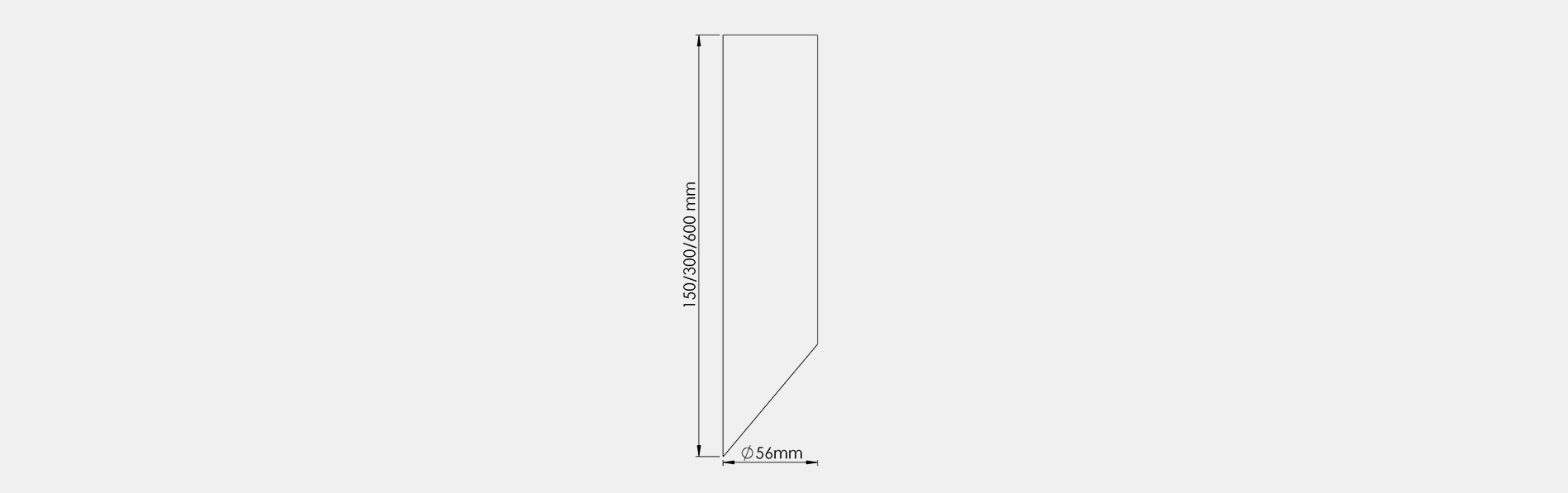

Drawing

General

Product Code:

CMC-56-150 / CMC--56-300 / CM-C-56-600

Luminaire Type:

Ceiling Mounted Tubular shaped Conical cut luminaire with deep recessed lamp placing

Body Construction:

Aluminum

Surface Finishes:

Texture White / Texture Black / Texture Graphite / Any Other RAL contrast color possible on Request

IP Rating:

20 , 40 , 54

Physical

Dimension Φ x H:

56mm x 150mm / 56mm x 300mm / 56mm x 600mm

Fixing System:

Ceiling mounted with screw

LED

Light Source:

Led

CCT:

3000K / 4000K / 5000K

CRI:

80+, 90+ , Available on request

MacAdam Step:

3

Optical

Light Distribution:

Direct

Beam Angle:

24* , 40* , 60*

Electrical

System Wattage:

56 x 150 - 5W / 10W - GU10
56 x 300 - 5W / 8.5W / 10W / 13W
56 x 600 - 5W / 8.5W / 10W / 13W

Luminous Flux:

80lm/W at Luminaire level

Power Factor:

0.94

Driver

Non-Dimmable

DALI Dimmable

Phase Cut Dimmable

0-10V Analogue

Downloads

Tubular-56C-Ceiling mounted Data Sheet

Tubular-56C-Ceiling mounted Custom Data Sheet

Tubular-56C-Ceiling mounted Installation Manual

Tubular-56C-Ceiling mounted IES files

Download All Except custom data sheet

Disclaimer: *Images are for display purposes only and could be different based on the type chosen. For better understanding, please refer to the diagrams.
