3391

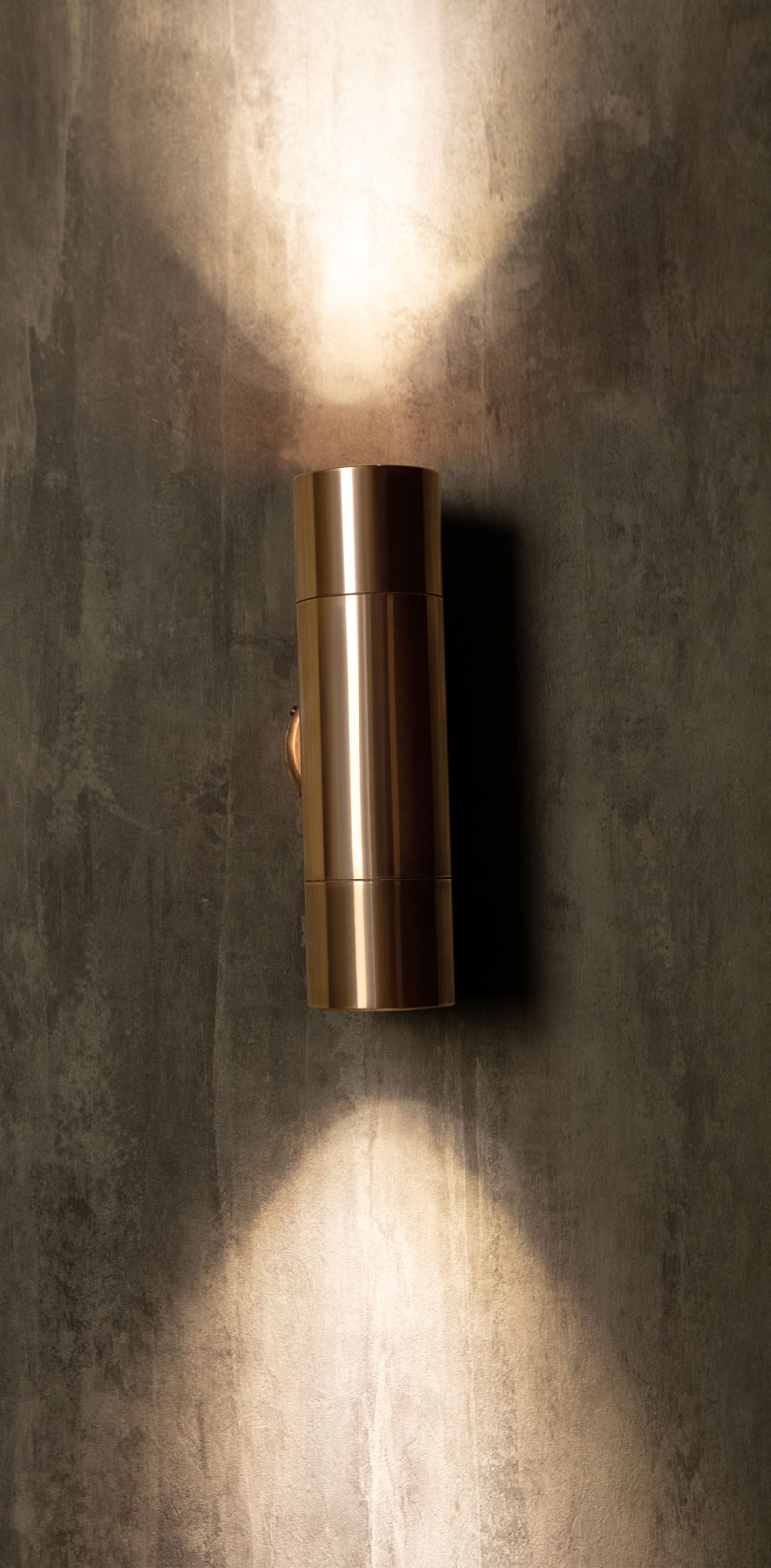

Wall mounted  fixed down light fixture. Body made of Aluminum housing  with high corrosion resistance. Clear toughened glass 3 mm thick diffuser sealed with silicon gasket.

General

Product Code:

3391

Luminaire Type:

Wall mounted up & down light fixture

Body Construction:

Copper / Brass / Aluminium

Surface Finishes:

Copper / Silver Grey or Any other RAL color possible

Physical

Dimension Φ x H:

60mmx210mm

LED

Light Source:

LED

CCT:

3000K / 4000K / 5000K

CRI:

+80, +90 available on request

MacAdam Step:

3

Optical

Light Distribution:

Symmetric

Visual Cut off:

40*

Beam Angle:

24* , 38*

Electrical

System Wattage:

2 x 5W

Input Voltage:

220-240V

Driver

Non-Dimmable

Dimmable on request

Downloads

3391 Data Sheet

3391 Custom Data Sheet

3391 Installation Manual

3391 IES files

Download All Except custom data sheet

Disclaimer: *Images are for display purposes only and could be different based on the type chosen. For better understanding, please refer to the diagrams.
